Scope of Work:	GPR investigation to map underground utilities up to depth of 6 m.
Location:	Kanpur, Uttar Pradesh.
Client:	UPMRC.
Equipment:	GSSI SIR 4000 equipped with 200 MHz and 400 MHz center frequency antennas.

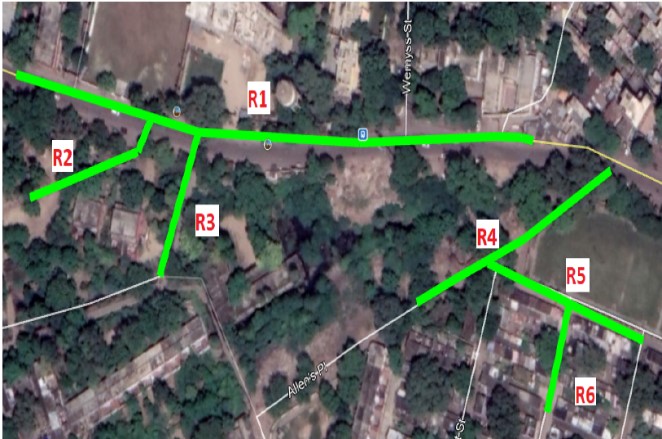

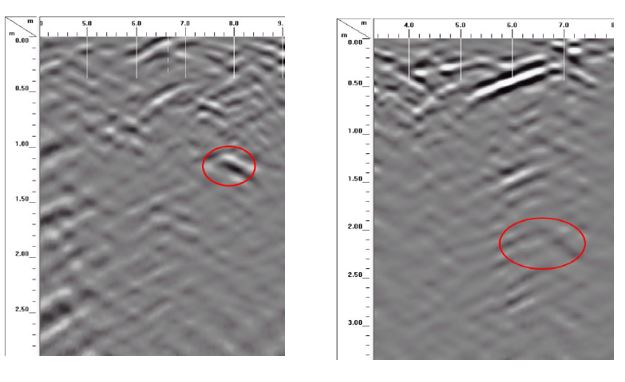

Summary:	The scope of the project includes the mapping of underground utilities using non-destructive Ground Penetrating Radar (GPR) technology at proposed location in Kanpur. The GPR survey has been carried out at proposed curtain cover and ramp area at KNPCC 05 package in Kanpur, Uttar Pradesh. The survey has been conducted in the month of March 2021. The scope of the work includes the mapping of the alignment of already existing pipelines in the area, up to the depth of around 6 m. The purpose of the survey is to map all the underground existing utilities including cables, water lines or any other utility to generate a record and plan map of the proposed. The aim is to plan the smooth execution of Metro Project without much interference to these existing assets.Considering the client's requirements and the expected depth of the utilities, the area has been surveyed using 200 MHz and 400 MHz centre frequency antennas mounted with SIR 4000 GPR system to cover the depth up to 0-6 m with fair resolution.
